#include <ComponentManager.h>

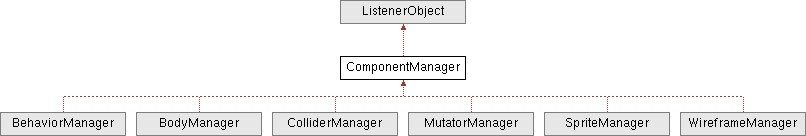

Inheritance diagram for ComponentManager:

# Public Member Functions
void	constructor ()
	Class' constructor.
void	destroyAllComponents ()
	Destroy all the manager's components.
virtual uint32	getType ()=0
virtual void	enable ()
	Enable the manager.
virtual void	disable ()
	Disable the manager.
virtual Component	create (Entity owner, const ComponentSpec *componentSpec)=0
virtual void	purgeComponents ()
	Force the purging of deleted components.
virtual bool	areComponentsVisual ()

# Static Public Member Functions
static Component	createComponent (Entity owner, const ComponentSpec *componentSpec)
static void	destroyComponent (Entity owner, Component component)
static Component	addComponent (Entity owner, const ComponentSpec *componentSpec)
static void	removeComponent (Entity owner, Component component)
static void	addComponents (Entity owner, ComponentSpec **componentSpecs, uint32 componentType)
static void	removeComponents (Entity owner, uint32 componentType)
static void	createComponents (Entity owner, ComponentSpec **componentSpecs)
static void	destroyComponents (Entity owner)
static Component	getComponentAtIndex (Entity owner, uint32 componentType, int16 componentIndex)
static void	getComponents (Entity owner, uint32 componentType, VirtualList components)
static bool	getComponentsOfClass (Entity owner, ClassPointer classPointer, VirtualList components, uint32 componentType)
static uint16	getComponentsCount (Entity owner, uint32 componentType)
static void	propagateCommand (int32 command, Entity owner, uint32 componentType,...)
static bool	calculateRightBox (Entity owner, RightBox *rightBox)

# Protected Attributes
VirtualList	components
	List of components.
bool	locked
	Flag to prevent the manipulation of the components list.

# Additional Inherited Members
Private Member Functions inherited from ListenerObject
void	constructor ()
	Class' constructor.
void	destructor ()
	Class' destructor.
void	addEventListener (ListenerObject listener, uint16 eventCode)
void	removeEventListener (ListenerObject listener, uint16 eventCode)
void	removeEventListeners (uint16 eventCode)
void	removeAllEventListeners ()
	Remove all listener objects.
bool	hasActiveEventListeners ()
void	fireEvent (uint16 eventCode)
void	sendMessageTo (ListenerObject receiver, uint32 message, uint32 delay, uint32 randomDelay)
void	sendMessageToSelf (uint32 message, uint32 delay, uint32 randomDelay)
void	discardAllMessages ()
	Discard all messages, both to be sent and to be received.
void	discardMessages (uint32 message)
virtual bool	onEvent (ListenerObject eventFirer, uint16 eventCode)
virtual bool	handleMessage (Telegram telegram)
Private Attributes inherited from ListenerObject
VirtualList	events
	List of registered events.
int8	eventFirings
	Counter that keeps track of the number of fired events to prevent race conditions in nested firings.

# Detailed Description

Class ComponentManager

Inherits from Object

Manages component instances.

Definition at line 38 of file ComponentManager.h.

# Member Function Documentation

# addComponent()

static Component ComponentManager::addComponent	(	Entity	owner,
		const ComponentSpec *	componentSpec )

static

Add a component to the specified owner.

Parameters

owner	Object to which the components attach to
componentSpec	Spec to initialize the new component

Returns: Added component

Definition at line 113 of file ComponentManager.c.

# addComponents()

static void ComponentManager::addComponents	(	Entity	owner,
		ComponentSpec **	componentSpecs,
		uint32	componentType )

static

Add components to the specified owner.

Parameters

owner	Object to which the components attach to
componentSpecs	Specs to initialize the new components
componentType	Type of components to add

Definition at line 142 of file ComponentManager.c.

# areComponentsVisual()

bool ComponentManager::areComponentsVisual ( )

virtual

Retrieve information regarding if the components are visile.

Returns: True if the components managed are visual; false otherwise

Reimplemented in SpriteManager, and WireframeManager.

Definition at line 746 of file ComponentManager.c.

# calculateRightBox()

static bool ComponentManager::calculateRightBox	(	Entity	owner,
		RightBox *	rightBox )

static

Compute the rightbox for the owner in base of its visual components.

Parameters

owner	Entity that the components attaches to
rightBox	Rightbox to configure

Returns: True if the owner has visual components; false otherwise

Definition at line 453 of file ComponentManager.c.

# constructor()

void ComponentManager::constructor ( )

Class' constructor.

Definition at line 639 of file ComponentManager.c.

# create()

virtual Component ComponentManager::create	(	Entity	owner,
		const ComponentSpec *	componentSpec )

pure virtual

Create a component with the provided spec.

Parameters

owner	Object to which the component will attach to
componentSpec	Spec to use to initialize the component

Returns: Created component

# createComponent()

static Component ComponentManager::createComponent	(	Entity	owner,
		const ComponentSpec *	componentSpec )

static

Create a component with the specified owner.

Parameters

owner	Owner of the component (can be NULL)
componentSpec	Spec to initialize the new component

Returns: Created component

Definition at line 47 of file ComponentManager.c.

# createComponents()

static void ComponentManager::createComponents	(	Entity	owner,
		ComponentSpec **	componentSpecs )

static

Create all the components from the specified specs array and attache to the provided owner.

Parameters

owner	Object to which the components attach to
componentSpecs	Specs to initialize the new components

Definition at line 203 of file ComponentManager.c.

# destroyAllComponents()

void ComponentManager::destroyAllComponents ( )

Destroy all the manager's components.

Definition at line 668 of file ComponentManager.c.

# destroyComponent()

static void ComponentManager::destroyComponent	(	Entity	owner,
		Component	component )

static

Destroy a component from the specified owner.

Parameters

owner	Owner of the component (can be NULL), must match the component's owner
component	Component to destroy

Definition at line 73 of file ComponentManager.c.

# destroyComponents()

static void ComponentManager::destroyComponents ( Entity owner )

static

Destroy all the components from the specified owner.

Parameters

owner Object to which the components attach to

Definition at line 224 of file ComponentManager.c.

# disable()

void ComponentManager::disable ( )

virtual

Disable the manager.

Reimplemented in BehaviorManager, BodyManager, ColliderManager, MutatorManager, SpriteManager, WireframeManager, and WireframeManager.

Definition at line 708 of file ComponentManager.c.

# enable()

void ComponentManager::enable ( )

virtual

Enable the manager.

Reimplemented in BehaviorManager, BodyManager, ColliderManager, MutatorManager, SpriteManager, WireframeManager, and WireframeManager.

Definition at line 701 of file ComponentManager.c.

# getComponentAtIndex()

static Component ComponentManager::getComponentAtIndex	(	Entity	owner,
		uint32	componentType,
		int16	componentIndex )

static

Retrieve a component of the given type at the desired position.

Parameters

owner	Object to which the components attach to
componentType	Type of components to add
componentIndex	Component's index according to their order of creation

Returns: Component at the provided index position

Definition at line 258 of file ComponentManager.c.

# getComponents()

static void ComponentManager::getComponents	(	Entity	owner,
		uint32	componentType,
		VirtualList	components )

static

Retrieve a list with the components of the provided type belonging to the provided owner.

Parameters

owner	Object to which the components attach to
componentType	Type of components to add
components	List to populate with the owner's compontents

Definition at line 290 of file ComponentManager.c.

# getComponentsCount()

static uint16 ComponentManager::getComponentsCount	(	Entity	owner,
		uint32	componentType )

static

Retrieve the number of components belonging to the provided owner.

Parameters

owner	Object to which the components attach to
componentType	Type of components to count

Returns: Number of components belonging to the provided owner

Definition at line 356 of file ComponentManager.c.

# getComponentsOfClass()

static bool ComponentManager::getComponentsOfClass	(	Entity	owner,
		ClassPointer	classPointer,
		VirtualList	components,
		uint32	componentType )

static

Retrieve the linked list of components that are instances of the provided class.

Parameters

owner	Object to which the components attach to
classPointer	Pointer to the class to use as search criteria. Usage: typeofclass(ClassName)
components	Linked list to be filled with the components that meed the search criteria (it is externally allocated and must be externally deleted)
componentType	Type of components to retrieve

Returns: True if one or more components met the search criteria; false otherwise

Definition at line 317 of file ComponentManager.c.

# getType()

virtual uint32 ComponentManager::getType ( )

pure virtual

Retrieve the compoment type that the manager manages.

Returns: Component type

Implemented in BehaviorManager, BodyManager, ColliderManager, MutatorManager, SpriteManager, and WireframeManager.

# propagateCommand()

static void ComponentManager::propagateCommand	(	int32	command,
		Entity	owner,
		uint32	componentType,
			... )

static

Propagate a command to the components of the provided type.

Parameters

command	Command to propagate to all the components of the provided tyep
owner	Owner of the components to command (all if NULL)
componentType	Type of components towards which to propagate the command
...	Variable arguments list depending on the command

Definition at line 401 of file ComponentManager.c.

# purgeComponents()

void ComponentManager::purgeComponents ( )

virtual

Force the purging of deleted components.

Reimplemented in SpriteManager.

Definition at line 715 of file ComponentManager.c.

# removeComponent()

static void ComponentManager::removeComponent	(	Entity	owner,
		Component	component )

static

Remove a component from the specified owner.

Parameters

owner	Object to which the components attach to
component	Component to remove

Definition at line 125 of file ComponentManager.c.

# removeComponents()

static void ComponentManager::removeComponents	(	Entity	owner,
		uint32	componentType )

static

Remove components from the specified owner.

Parameters

owner	Object to which the components attach to
componentType	Type of components to remove

Definition at line 166 of file ComponentManager.c.

# Member Data Documentation

# components

VirtualList ComponentManager::components

protected

List of components.

Definition at line 43 of file ComponentManager.h.

# locked

bool ComponentManager::locked

protected

Flag to prevent the manipulation of the components list.

Definition at line 46 of file ComponentManager.h.

The documentation for this class was generated from the following files:

VUEngine-Core/source/Component/ComponentManager.h
VUEngine-Core/source/Component/ComponentManager.c

Introduction

Setup

Basics

Language

User Guide

API

Tutorial

ComponentManager Class Referenceabstract

# Public Member Functions

# Static Public Member Functions

# Protected Attributes

# Additional Inherited Members

# Detailed Description

# Member Function Documentation

# addComponent()

# addComponents()

# areComponentsVisual()

# calculateRightBox()

# constructor()

# create()

# createComponent()

# createComponents()

# destroyAllComponents()

# destroyComponent()

# destroyComponents()

# disable()

# enable()

# getComponentAtIndex()

# getComponents()

# getComponentsCount()

# getComponentsOfClass()

# getType()

# propagateCommand()

# purgeComponents()

# removeComponent()

# removeComponents()

# Member Data Documentation

# components

# locked
