#include <Container.h>

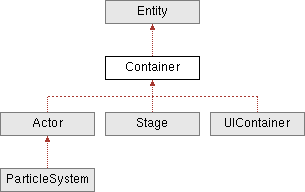

Inheritance diagram for Container:

# Public Member Functions
void	constructor (int16 internalId, const char *const name)
override void	setDirection (const Vector3D *direction)
override void	show ()
	Make this instance visible.
override void	hide ()
	Make this instance invisible.
override void	setTransparency (uint8 transparency)
override void	setPosition (const Vector3D *position)
override void	setRotation (const Rotation *rotation)
override void	setScale (const Scale *scale)
void	setNormalizedDirection (NormalizedDirection normalizedDirection)
NormalizedDirection	getNormalizedDirection ()
void	deleteMyself ()
int16	getInternalId ()
void	setName (const char *const name)
const char *	getName ()
void	streamOut (bool streamOut)
Container	getParent ()
void	addChild (Container child)
void	removeChild (Container child, bool deleteChild)
void	purgeChildren ()
	Force the destruction of all children marked to be deleted.
bool	getChildren (ClassPointer classPointer, VirtualList children)
Container	getChildById (int16 id)
Container	getChildByName (const char *childName, bool recursive)
Container	getChildAtPosition (int16 position)
int32	getChildrenCount ()
Container	getFirstAncestor ()
Container	getRelativeByName (const char *relativeName)
void	updateChildren ()
	Update the children of this container.
void	invalidateTransformation ()
void	transformChildren (uint8 invalidateTransformationFlag)
void	propagateCommand (uint32 command,...)
bool	propagateMessage (bool(propagatedMessageHandler)(void , va_list),...)
bool	onPropagatedMessage (va_list args)
bool	propagateString (bool(propagatedMessageHandler)(void , va_list),...)
bool	onPropagatedString (va_list args)
void	translate (const Vector3D *translation)
void	rotate (const Rotation *rotation)
void	scale (const Scale *scale)
const Vector3D *	getLocalPosition ()
const Rotation *	getLocalRotation ()
const Scale *	getLocalScale ()
virtual void	setLocalPosition (const Vector3D *position)
virtual void	setLocalRotation (const Rotation *rotation)
virtual void	setLocalScale (const Scale *scale)
virtual void	ready (bool recursive)
virtual void	transform (const Transformation *environmentTransform, uint8 invalidateTransformationFlag)
virtual void	update ()
	Update this instance's logic.
virtual void	suspend ()
	Prepare to suspend this instance's logic.
virtual void	resume ()
	Prepare to resume this instance's logic.
virtual void	handleCommand (int32 command, va_list args)
virtual bool	handlePropagatedMessage (int32 message)
virtual bool	handlePropagatedString (const char *string)

# Protected Attributes
Container	parent
	Container of which this one is a child.
VirtualList	children
Transformation	localTransformation
	3D local transformation
char *	name
	Container's name.
int16	internalId
	Container's internal id, set by the engine.
bool	deleteMe
	If true, the parent will delete this container when appropriate.
bool	ready
bool	dontStreamOut
bool	hidden
	Flag to mark the container (and its children) as non visible.
int8	axisForSynchronizationWithBody
	Axises around which to rotate the container when syncronizing with body.

# Additional Inherited Members
Private Member Functions inherited from Entity
void	constructor ()
	Class' constructor.
override bool	handleMessage (Telegram telegram)
void	clearComponentLists (uint32 componentType)
Component	addComponent (const ComponentSpec *componentSpec)
void	removeComponent (Component component)
void	addComponents (ComponentSpec **componentSpecs, uint32 componentType)
void	removeComponents (uint32 componentType)
Component	getComponentAtIndex (uint32 componentType, int16 componentIndex)
VirtualList	getComponents (uint32 componentType)
bool	getComponentsOfClass (ClassPointer classPointer, VirtualList components, uint32 componentType)
uint16	getComponentsCount (uint32 componentType)
void	resetComponents ()
	Reset components.
void	setVisible ()
	Set this instance's visibility flag up.
const Transformation *	getTransformation ()
const Vector3D *	getPosition ()
const Rotation *	getRotation ()
const Scale *	getScale ()
Body	getBody ()
bool	isMoving ()
void	stopAllMovement ()
	Stop all entity's movement.
void	stopMovement (uint16 axis)
bool	setVelocity (const Vector3D *velocity, bool checkIfCanMove)
const Vector3D *	getVelocity ()
fixed_t	getSpeed ()
fixed_t	getMaximumSpeed ()
fixed_t	getBounciness ()
fixed_t	getFrictionCoefficient ()
void	enableCollisions ()
	Enable collision detection on the entity's colliders.
void	disableCollisions ()
	Disable collision detection on the entity's colliders.
void	checkCollisions (bool activate)
void	registerCollisions (bool activate)
void	setCollidersLayers (uint32 layers)
uint32	getCollidersLayers ()
void	setCollidersLayersToIgnore (uint32 layersToIgnore)
uint32	getCollidersLayersToIgnore ()
bool	hasColliders ()
void	showColliders ()
	Make the entity's colliders visible.
void	hideColliders ()
	Make the entity's colliders invisible.
virtual void	createComponents (ComponentSpec **componentSpecs)
virtual void	destroyComponents ()
	Destroy the components that attach to this container.
virtual void	addedComponent (Component component)
virtual void	removedComponent (Component component)
virtual void	calculateSize ()
	Configure the entity's size.
virtual fixed_t	getRadius ()
virtual const Vector3D *	getDirection ()
virtual bool	applyForce (const Vector3D *force, bool checkIfCanMove)
virtual bool	canMoveTowards (Vector3D direction)
virtual bool	isSensibleToCollidingObjectBouncinessOnCollision (Entity collidingEntity)
virtual bool	isSensibleToCollidingObjectFrictionOnCollision (Entity collidingEntity)
virtual bool	isSubjectToGravity (Vector3D gravity)
virtual bool	collisionStarts (const CollisionInformation *collisionInformation)
virtual void	collisionPersists (const CollisionInformation *collisionInformation)
virtual void	collisionEnds (const CollisionInformation *collisionInformation)
virtual uint32	getInGameType ()
Private Attributes inherited from Entity
VirtualList *	components
	Linked list of attached components.
Transformation	transformation
	3D transformation
Body	body
bool	isVisible
	Flag used for streaming purposes.

# Detailed Description

Class Container

Inherits from Entity

Adds parenting cababilities to spatial objects.

Definition at line 41 of file Container.h.

# Member Function Documentation

# addChild()

void Container::addChild ( Container child )

Add a container as a child.

Parameters

child Container to be added as a child

Definition at line 406 of file Container.c.

# constructor()

void Container::constructor	(	int16	internalId,
		const char *const	name )

Class' constructor

Parameters

internalId	ID to keep track internally of the new instance
name	Name to assign to the new instance

Definition at line 35 of file Container.c.

# deleteMyself()

void Container::deleteMyself ( )

Delete this container when appropriate. Containers must not be deleted nor created directly by the client code

Definition at line 334 of file Container.c.

# getChildAtPosition()

Container Container::getChildAtPosition ( int16 position )

Retrieve the child at the provided position in the linked list of children.

Parameters

position Position in the linked list of children

Returns: The child container at the provided position if any

Definition at line 614 of file Container.c.

# getChildById()

Container Container::getChildById ( int16 id )

Retrieve a child of this container whose internal ID equals the provided one.

Parameters

id	Internal ID to look for

Returns: Child container whose ID matches the provided one

Definition at line 573 of file Container.c.

# getChildByName()

Container Container::getChildByName	(	const char *	childName,
		bool	recursive )

Find a child with the provided name.

Parameters

childName	Name to look for
recursive	If true, the seach extends to grand children, grand grand children, etc.

Returns: The first child container whose name equals the provided one

Definition at line 593 of file Container.c.

# getChildren()

bool Container::getChildren	(	ClassPointer	classPointer,
		VirtualList	children )

Retrieve the linked list of children that are instances of the provided class.

Parameters

classPointer	Pointer to the class to use as search criteria. Usage: typeofclass(ClassName)
children	Linked list to be filled with the children that meed the search criteria (it is externally allocated and must be externally deleted)

Returns: True if one or more children met the search criteria; false otherwise

Definition at line 551 of file Container.c.

# getChildrenCount()

int32 Container::getChildrenCount ( )

Retrieve the amount of children of this container.

Returns: Amount of children of this container

Definition at line 626 of file Container.c.

# getFirstAncestor()

Container Container::getFirstAncestor ( )

Retrieve the first ancestor.

Returns: The first ancestor of the container.

Definition at line 633 of file Container.c.

# getInternalId()

int16 Container::getInternalId ( )

Retrieve the container's internal id used by the engine to keep track of it.

Returns: Container's internal id

Definition at line 378 of file Container.c.

# getLocalPosition()

const Vector3D * Container::getLocalPosition ( )

Retrieve the local position.

Returns: Pointer to the local transformation's position

Definition at line 871 of file Container.c.

# getLocalRotation()

const Rotation * Container::getLocalRotation ( )

Retrieve the local rotation.

Returns: Pointer to the local transformation's rotation

Definition at line 878 of file Container.c.

# getLocalScale()

const Scale * Container::getLocalScale ( )

Retrieve the local scale.

Returns: Pointer to the local transformation's scale

Definition at line 885 of file Container.c.

# getName()

const char * Container::getName ( )

Retrive the container's name.

Returns: Pointer to the container's name

Definition at line 385 of file Container.c.

# getNormalizedDirection()

NormalizedDirection Container::getNormalizedDirection ( )

Retrieve the normalized direction towards where the container faces.

Returns: Container's facing direction with is components normalized

Definition at line 307 of file Container.c.

# getParent()

Container Container::getParent ( )

Retrieve this container's parent container.

Returns: Parent container

Definition at line 399 of file Container.c.

# getRelativeByName()

Container Container::getRelativeByName ( const char * relativeName )

Find a relative in the whole hierarchy of containers with the provided name.

Parameters

relativeName Name to look for

Returns: The first container whose name equals the provided one

Definition at line 647 of file Container.c.

# handleCommand()

void Container::handleCommand	(	int32	command,
		va_list	args )

virtual

Default command handler.

Parameters

command	Propagated command
args	Variable arguments list depending on the command to handle

Reimplemented in Actor.

Definition at line 1056 of file Container.c.

# handlePropagatedMessage()

bool Container::handlePropagatedMessage ( int32 message )

virtual

Default interger message handler for propagateMessage

Parameters

message Propagated integer message

Returns: True if the propagation must stop; false if the propagation must reach other containers

Definition at line 1061 of file Container.c.

# handlePropagatedString()

bool Container::handlePropagatedString ( const char * string )

virtual

Default string handler for propagateString

Parameters

string Propagated string

Returns: True if the propagation must stop; false if the propagation must reach other containers

Reimplemented in Actor.

Definition at line 1068 of file Container.c.

# hide()

void Container::hide ( )

virtual

Make this instance invisible.

Reimplemented from Entity.

Reimplemented in ParticleSystem.

Definition at line 151 of file Container.c.

# invalidateTransformation()

void Container::invalidateTransformation ( )

Invalidate the transformation to force it to be recomputed in the next game cycle.

Definition at line 701 of file Container.c.

# onPropagatedMessage()

bool Container::onPropagatedMessage ( va_list args )

Generic integer message propagator

Parameters

args	Variable list of propagated arguments

Definition at line 797 of file Container.c.

# onPropagatedString()

bool Container::onPropagatedString ( va_list args )

Generic string propagator

Parameters

args	Variable list of propagated arguments

Definition at line 819 of file Container.c.

# propagateCommand()

void Container::propagateCommand	(	uint32	command,
			... )

Propagate a command to the container's children.

Parameters

command	Method that handles the message
...	Variable arguments list depending on the command

Returns: The result that the provided message handler returns

Definition at line 758 of file Container.c.

# propagateMessage()

bool Container::propagateMessage	(	bool(*	propagatedMessageHandler )(void *, va_list),
			... )

Propagate an integer message through the whole parenting hierarchy (children, grand children, etc.).

Parameters

propagatedMessageHandler	Method that handles the message
...	Variable arguments list depending on the message

Returns: The result that the provided message handler returns

Definition at line 783 of file Container.c.

# propagateString()

bool Container::propagateString	(	bool(*	propagatedMessageHandler )(void *, va_list),
			... )

Propagate a string through the whole parenting hierarchy (children, grand children, etc.).

Parameters

propagatedMessageHandler	Method that handles the string
...	Variable arguments list depending on the string

Returns: The result that the provided string handler returns

Definition at line 805 of file Container.c.

# purgeChildren()

void Container::purgeChildren ( )

Force the destruction of all children marked to be deleted.

Definition at line 507 of file Container.c.

# ready()

virtual void Container::ready ( bool recursive )

virtual

Make the container ready to start operating once it has been completely intialized.

Parameters

recursive If true, the ready call is propagated to its children, grand children, etc.

Reimplemented in Actor.

# removeChild()

void Container::removeChild	(	Container	child,
		bool	deleteChild )

Reomve a child container for this container's children list.

Parameters

child	Container to be remove as a child
deleteChild	If true, the child will be deleted in the next game cycle

Definition at line 460 of file Container.c.

# resume()

void Container::resume ( )

virtual

Prepare to resume this instance's logic.

Reimplemented in Actor, ParticleSystem, and Stage.

Definition at line 1030 of file Container.c.

# rotate()

void Container::rotate ( const Rotation * rotation )

Rotate the container.

Parameters

rotation Rotation to be added to the container's rotation

Definition at line 850 of file Container.c.

# scale()

void Container::scale ( const Scale * scale )

Scale the container.

Parameters

scale Scale to be applied to the container's scale

Definition at line 862 of file Container.c.

# setDirection()

void Container::setDirection ( const Vector3D * direction )

virtual

Set the direction towards which the object must move.

Parameters

direction Pointer to a direction vector

Reimplemented from Entity.

Definition at line 210 of file Container.c.

# setLocalPosition()

void Container::setLocalPosition ( const Vector3D * position )

virtual

Set the local position.

Parameters

position New local position

Definition at line 892 of file Container.c.

# setLocalRotation()

void Container::setLocalRotation ( const Rotation * rotation )

virtual

Set the local rotation.

Parameters

rotation New local rotation

Definition at line 933 of file Container.c.

# setLocalScale()

void Container::setLocalScale ( const Scale * scale )

virtual

Set the local scale.

Parameters

scale New local scale

Definition at line 955 of file Container.c.

# setName()

void Container::setName ( const char *const name )

Set the container's name.

Parameters

name	Name to assign to the instance

Definition at line 351 of file Container.c.

# setNormalizedDirection()

void Container::setNormalizedDirection ( NormalizedDirection normalizedDirection )

Set the normalized direction towards where the container faces.

Parameters

normalizedDirection New facing direction with is components normalized

Definition at line 271 of file Container.c.

# setPosition()

void Container::setPosition ( const Vector3D * position )

virtual

Set the container's position.

Parameters

position 3D vector defining the object's new position

Reimplemented from Entity.

Definition at line 177 of file Container.c.

# setRotation()

void Container::setRotation ( const Rotation * rotation )

virtual

Set the container's rotation.

Parameters

rotation Rotation

Reimplemented from Entity.

Definition at line 188 of file Container.c.

# setScale()

void Container::setScale ( const Scale * scale )

virtual

Set the container's scale.

Parameters

scale Scale

Reimplemented from Entity.

Definition at line 199 of file Container.c.

# setTransparency()

void Container::setTransparency ( uint8 transparency )

virtual

Set this instance's transparency effects.

Parameters

transparency Transparecy effect (__TRANSPARENCY_NONE, __EVEN or __ODD)

Reimplemented from Entity.

Reimplemented in ParticleSystem.

Definition at line 165 of file Container.c.

# show()

void Container::show ( )

virtual

Make this instance visible.

Reimplemented from Entity.

Reimplemented in ParticleSystem.

Definition at line 135 of file Container.c.

# streamOut()

void Container::streamOut ( bool streamOut )

Set the streaming effects on this container.

Parameters

streamOut If false, this container won't be streamed out when outside of the camera's reach

Definition at line 392 of file Container.c.

# suspend()

void Container::suspend ( )

virtual

Prepare to suspend this instance's logic.

Reimplemented in Actor, ParticleSystem, and Stage.

Definition at line 1011 of file Container.c.

# transform()

void Container::transform	(	const Transformation *	environmentTransform,
		uint8	invalidateTransformationFlag )

virtual

Compute the container's global transformation.

Parameters

environmentTransform	Reference environment for the local transformation
invalidateTransformationFlag	Flag that determines which transfomation's components must be recomputed

Reimplemented in UIContainer.

Definition at line 997 of file Container.c.

# transformChildren()

void Container::transformChildren ( uint8 invalidateTransformationFlag )

Apply the transformations to this container's children.

Parameters

invalidateTransformationFlag Flag that determines which transfomation's components must be recomputed

Force non virtual call

Definition at line 718 of file Container.c.

# translate()

void Container::translate ( const Vector3D * translation )

Displace the container.

Parameters

translation Displacement to be added to the container's position

Definition at line 827 of file Container.c.

# update()

void Container::update ( )

virtual

Update this instance's logic.

Reimplemented in ParticleSystem.

Definition at line 1004 of file Container.c.

# updateChildren()

void Container::updateChildren ( )

Update the children of this container.

Definition at line 656 of file Container.c.

# Member Data Documentation

# axisForSynchronizationWithBody

int8 Container::axisForSynchronizationWithBody

protected

Axises around which to rotate the container when syncronizing with body.

Definition at line 75 of file Container.h.

# children

VirtualList Container::children

protected

Linked list of child containers The VB's CPU doesn't have data cache, so there is not a good reason to loose generality

Definition at line 51 of file Container.h.

# deleteMe

bool Container::deleteMe

protected

If true, the parent will delete this container when appropriate.

Definition at line 63 of file Container.h.

# dontStreamOut

bool Container::dontStreamOut

protected

Definition at line 69 of file Container.h.

# hidden

bool Container::hidden

protected

Flag to mark the container (and its children) as non visible.

Definition at line 72 of file Container.h.

# internalId

int16 Container::internalId

protected

Container's internal id, set by the engine.

Definition at line 60 of file Container.h.

# localTransformation

Transformation Container::localTransformation

protected

3D local transformation

Definition at line 54 of file Container.h.

# name

char* Container::name

protected

Container's name.

Definition at line 57 of file Container.h.

# parent

Container Container::parent

protected

Container of which this one is a child.

Definition at line 46 of file Container.h.

# ready

void Container::ready

protected

Definition at line 66 of file Container.h.

The documentation for this class was generated from the following files:

VUEngine-Core/source/Entity/Container/Container.h
VUEngine-Core/source/Entity/Container/Container.c

Introduction

Setup

Basics

Language

User Guide

API

Tutorial

Container Class Reference

# Public Member Functions

# Protected Attributes

# Additional Inherited Members

# Detailed Description

# Member Function Documentation

# addChild()

# constructor()

# deleteMyself()

# getChildAtPosition()

# getChildById()

# getChildByName()

# getChildren()

# getChildrenCount()

# getFirstAncestor()

# getInternalId()

# getLocalPosition()

# getLocalRotation()

# getLocalScale()

# getName()

# getNormalizedDirection()

# getParent()

# getRelativeByName()

# handleCommand()

# handlePropagatedMessage()

# handlePropagatedString()

# hide()

# invalidateTransformation()

# onPropagatedMessage()

# onPropagatedString()

# propagateCommand()

# propagateMessage()

# propagateString()

# purgeChildren()

# ready()

# removeChild()

# resume()

# rotate()

# scale()

# setDirection()

# setLocalPosition()

# setLocalRotation()

# setLocalScale()

# setName()

# setNormalizedDirection()

# setPosition()

# setRotation()

# setScale()

# setTransparency()

# show()

# streamOut()

# suspend()

# transform()

# transformChildren()

# translate()

# update()

# updateChildren()

# Member Data Documentation

# axisForSynchronizationWithBody

# children

# deleteMe

# dontStreamOut

# hidden

# internalId

# localTransformation

# name

# parent

# ready
