#include <GameState.h>

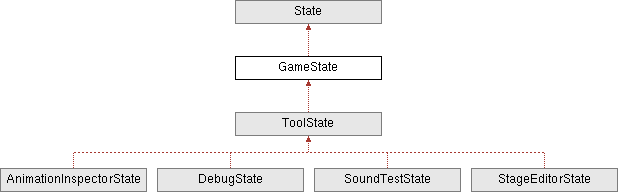

Inheritance diagram for GameState:

# Public Types
enum	stopClocks

# Public Member Functions
void	constructor ()
	Class' constructor.
override bool	handleMessage (Telegram telegram)
override void	start (void *owner)
override void	update (void *owner)
override void	stop (void *owner)
override void	pause (void *owner)
override void	unpause (void *owner)
override bool	processMessage (void *owner, Telegram telegram)
void	configureStage (StageSpec *stageSpec, VirtualList positionedActorsToIgnore)
UIContainer	getUIContainer ()
void	purgeComponentManagers ()
	Force the purging of deleted components.
void	startClocks ()
	Start all the clocks.
void	pauseClocks ()
	Pause all the clocks.
void	unpauseClocks ()
	Unpause all the clocks.
void	stopClocks ()
	Stop all the clocks.
void	startClock (uint32 clockEnum)
void	pauseClock (uint32 clockEnum)
void	unpauseClock (uint32 clockEnum)
void	stopClock (uint32 clockEnum)
void	applyTransformationsUI ()
	Update the UI's children' global transformations.
bool	propagateMessage (int32 message)
bool	propagateString (const char *string)
Actor	getActorByName (const char *actorName)
void	showActorWithName (const char *actorName)
void	hideActorWithName (const char *actorName)
void	changeFramerate (int16 targetFPS, int32 duration)
void	streamAll ()
	Force to completely stream in and out actors and to initialize all.
bool	lockFrameRate ()
void	printClocks (int16 x, int16 y)
virtual void	enter (void *owner)
virtual void	execute (void *owner)
virtual void	exit (void *owner)
virtual void	suspend (void *owner)
virtual void	resume (void *owner)
virtual void	processUserInput (const UserInput *userInput)
virtual bool	isVersusMode ()

# Protected Attributes
UIContainer	uiContainer
	A container for actors that componse the UI.
Stage	stage
	A container for the game entites.
ComponentManager	componentManagers [kComponentTypes]
	Array of component managers.
Clock	logicsClock
	A clock for logics.
Clock	messagingClock
	A clock for messaging.
Clock	animationsClock
	A clock for animations.
Clock	physicsClock
	A clock for physics.
bool	stream
	Flags to enable or disable the streaming.
bool	transform
	Flags to enable or disable the transformations.
bool	processBehaviors
	Flags to enable or disable the behavior processing.
bool	processMutators
	Flags to enable or disable the mutator processing.
bool	updatePhysics
	Flags to enable or disable the physical simulations.
bool	processCollisions
	Flags to enable or disable the collision detection and processing.
uint8	framerate
bool	lockFrameRate
	If false, the game loop runs unlocked.

# Additional Inherited Members
Private Member Functions inherited from State
void	constructor ()
	Class's constructor.
void	destructor ()
	Class's destructor.

# Detailed Description

Class GameState

Inherits from State

Implements a state that the VUEngine's state machine can transition into.

Definition at line 55 of file GameState.h.

# Member Enumeration Documentation

# stopClocks

enum void GameState::stopClocks

Definition at line 36 of file GameState.h.

# Member Function Documentation

# applyTransformationsUI()

void GameState::applyTransformationsUI ( )

Update the UI's children' global transformations.

Definition at line 816 of file GameState.c.

# changeFramerate()

void GameState::changeFramerate	(	int16	targetFPS,
		int32	duration )

Change the target frame rate.

Parameters

targetFPS	New target frame rate
duration	Amount of time to keep the change on the frame rate before setting back the default target (0 or negative to make it permanent as long as the state is active)

Definition at line 545 of file GameState.c.

# configureStage()

void GameState::configureStage	(	StageSpec *	stageSpec,
		VirtualList	positionedActorsToIgnore )

Configure the stage with the provided stage spec.

Parameters

stageSpec	Specification that determines how to configure the stage
positionedActorsToIgnore	List of positioned actor structs to register for streaming

Definition at line 326 of file GameState.c.

# constructor()

void GameState::constructor ( )

Class' constructor.

Definition at line 46 of file GameState.c.

# enter()

void GameState::enter ( void * owner )

virtual

Prepares the object to enter this state.

Parameters

owner Object that is entering in this state

Reimplemented in SoundTestState.

Definition at line 607 of file GameState.c.

# execute()

void GameState::execute ( void * owner )

virtual

Updates the object in this state.

Parameters

owner Object that is in this state

Definition at line 612 of file GameState.c.

# exit()

void GameState::exit ( void * owner )

virtual

Prepares the object to exit this state.

Parameters

owner Object that is exiting this state

Definition at line 617 of file GameState.c.

# getActorByName()

Actor GameState::getActorByName ( const char * actorName )

Find a stage's child (grand child, etc.) by its name.

Parameters

actorName Name to look for

Definition at line 499 of file GameState.c.

# getUIContainer()

UIContainer GameState::getUIContainer ( )

Retrieve the UI container.

Returns: UI Container

Definition at line 375 of file GameState.c.

# handleMessage()

bool GameState::handleMessage ( Telegram telegram )

virtual

Receive and process a Telegram.

Parameters

telegram Received telegram to process

Returns: True if the telegram was processed

Reimplemented from ListenerObject.

Definition at line 114 of file GameState.c.

# hideActorWithName()

void GameState::hideActorWithName ( const char * actorName )

Hide a stage's child (grand child, etc.) with the provided name.

Parameters

actorName Name to look for

Definition at line 528 of file GameState.c.

# isVersusMode()

bool GameState::isVersusMode ( )

virtual

Check if the game state is in versus mode.

Returns: True if the state is in versus mode; false otherwise

Definition at line 637 of file GameState.c.

# lockFrameRate()

bool GameState::lockFrameRate ( )

Check if the framerate is locked or not

Returns: True if the framerate is locked; false otherwise

# pause()

void GameState::pause ( void * owner )

virtual

Prepares the object to become inactive in this state.

Parameters

owner Object that is in this state

Reimplemented from State.

Definition at line 217 of file GameState.c.

# pauseClock()

void GameState::pauseClock ( uint32 clockEnum )

Pause the clock used for logics.

Parameters

clockEnum Enum that identifies the clock to pause

Definition at line 434 of file GameState.c.

# pauseClocks()

void GameState::pauseClocks ( )

Pause all the clocks.

Definition at line 392 of file GameState.c.

# printClocks()

void GameState::printClocks	(	int16	x,
		int16	y )

Print the clocks.

Parameters

x	Screen x coordinate where to print
y	Screen y coordinate where to print

Definition at line 593 of file GameState.c.

# processMessage()

bool GameState::processMessage	(	void *	owner,
		Telegram	telegram )

virtual

Process a Telegram sent to an object that is in this state.

Parameters

owner	Object that is in this state
telegram	Telegram to process

Reimplemented from State.

Definition at line 313 of file GameState.c.

# processUserInput()

void GameState::processUserInput ( const UserInput * userInput )

virtual

Process the provided user input.

Parameters

userInput Struct with the current user input information

Reimplemented in ToolState.

Definition at line 632 of file GameState.c.

# propagateMessage()

bool GameState::propagateMessage ( int32 message )

Propagate an integer message through the whole parenting hierarchy of the stage (children, grand children, etc.).

Parameters

message The message to propagate

Returns: True if some actor processed the message

Definition at line 470 of file GameState.c.

# propagateString()

bool GameState::propagateString ( const char * string )

Propagate a string through the whole parenting hierarchy of the stage (children, grand children, etc.).

Parameters

string The string to propagate

Returns: True if some actor processed the string

Definition at line 487 of file GameState.c.

# purgeComponentManagers()

void GameState::purgeComponentManagers ( )

Force the purging of deleted components.

Definition at line 360 of file GameState.c.

# resume()

void GameState::resume ( void * owner )

virtual

Prepares the object to become active in this state.

Parameters

owner Object that is in this state

Definition at line 627 of file GameState.c.

# showActorWithName()

void GameState::showActorWithName ( const char * actorName )

Show a stage's child (grand child, etc.) with the provided name.

Parameters

actorName Name to look for

Definition at line 511 of file GameState.c.

# start()

void GameState::start ( void * owner )

virtual

Prepares the object to enter this state.

Parameters

owner Object that is entering in this state

Reimplemented from State.

Reimplemented in ToolState.

Definition at line 135 of file GameState.c.

# startClock()

void GameState::startClock ( uint32 clockEnum )

Start the clock used for logics.

Parameters

clockEnum Enum that identifies the clock to start

Definition at line 422 of file GameState.c.

# startClocks()

void GameState::startClocks ( )

Start all the clocks.

Definition at line 382 of file GameState.c.

# stop()

void GameState::stop ( void * owner )

virtual

Prepares the object to exit this state.

Parameters

owner Object that is exiting this state

Reimplemented from State.

Reimplemented in ToolState.

Definition at line 193 of file GameState.c.

# stopClock()

void GameState::stopClock ( uint32 clockEnum )

Stop the clock used for logics.

Parameters

clockEnum Enum that identifies the clock to stop

Definition at line 458 of file GameState.c.

# stopClocks()

void GameState::stopClocks ( )

Stop all the clocks.

# streamAll()

void GameState::streamAll ( )

Force to completely stream in and out actors and to initialize all.

Definition at line 563 of file GameState.c.

# suspend()

void GameState::suspend ( void * owner )

virtual

Prepares the object to become inactive in this state.

Parameters

owner Object that is in this state

Definition at line 622 of file GameState.c.

# unpause()

void GameState::unpause ( void * owner )

virtual

Prepares the object to become active in this state.

Parameters

owner Object that is in this state

Reimplemented from State.

Definition at line 256 of file GameState.c.

# unpauseClock()

void GameState::unpauseClock ( uint32 clockEnum )

Unpause the clock used for logics.

Parameters

clockEnum Enum that identifies the clock to unpause

Definition at line 446 of file GameState.c.

# unpauseClocks()

void GameState::unpauseClocks ( )

Unpause all the clocks.

Definition at line 402 of file GameState.c.

# update()

void GameState::update ( void * owner )

virtual

Updates the object in this state.

Parameters

owner Object that is in this state

Reimplemented from State.

Reimplemented in ToolState.

Definition at line 156 of file GameState.c.

# Member Data Documentation

# animationsClock

Clock GameState::animationsClock

protected

A clock for animations.

Definition at line 75 of file GameState.h.

# componentManagers

ComponentManager GameState::componentManagers[kComponentTypes]

protected

Array of component managers.

Definition at line 66 of file GameState.h.

# framerate

uint8 GameState::framerate

protected

Each game state needs to keep track of the frame rate that it runs at in case it is paused and resumed

Definition at line 100 of file GameState.h.

# lockFrameRate

bool GameState::lockFrameRate

protected

If false, the game loop runs unlocked.

Definition at line 103 of file GameState.h.

# logicsClock

Clock GameState::logicsClock

protected

A clock for logics.

Definition at line 69 of file GameState.h.

# messagingClock

Clock GameState::messagingClock

protected

A clock for messaging.

Definition at line 72 of file GameState.h.

# physicsClock

Clock GameState::physicsClock

protected

A clock for physics.

Definition at line 78 of file GameState.h.

# processBehaviors

void GameState::processBehaviors

protected

Flags to enable or disable the behavior processing.

Definition at line 87 of file GameState.h.

# processCollisions

void GameState::processCollisions

protected

Flags to enable or disable the collision detection and processing.

Definition at line 96 of file GameState.h.

# processMutators

void GameState::processMutators

protected

Flags to enable or disable the mutator processing.

Definition at line 90 of file GameState.h.

# stage

Stage GameState::stage

protected

A container for the game entites.

Definition at line 63 of file GameState.h.

# stream

void GameState::stream

protected

Flags to enable or disable the streaming.

Definition at line 81 of file GameState.h.

# transform

bool GameState::transform

protected

Flags to enable or disable the transformations.

Definition at line 84 of file GameState.h.

# uiContainer

UIContainer GameState::uiContainer

protected

A container for actors that componse the UI.

Definition at line 60 of file GameState.h.

# updatePhysics

bool GameState::updatePhysics

protected

Flags to enable or disable the physical simulations.

Definition at line 93 of file GameState.h.

The documentation for this class was generated from the following files:

VUEngine-Core/source/State/GameState/GameState.h
VUEngine-Core/source/State/GameState/GameState.c

Introduction

Setup

Basics

Language

User Guide

API

Tutorial

GameState Class Reference

# Public Types

# Public Member Functions

# Protected Attributes

# Additional Inherited Members

# Detailed Description

# Member Enumeration Documentation

# stopClocks

# Member Function Documentation

# applyTransformationsUI()

# changeFramerate()

# configureStage()

# constructor()

# enter()

# execute()

# exit()

# getActorByName()

# getUIContainer()

# handleMessage()

# hideActorWithName()

# isVersusMode()

# lockFrameRate()

# pause()

# pauseClock()

# pauseClocks()

# printClocks()

# processMessage()

# processUserInput()

# propagateMessage()

# propagateString()

# purgeComponentManagers()

# resume()

# showActorWithName()

# start()

# startClock()

# startClocks()

# stop()

# stopClock()

# stopClocks()

# streamAll()

# suspend()

# unpause()

# unpauseClock()

# unpauseClocks()

# update()

# Member Data Documentation

# animationsClock

# componentManagers

# framerate

# lockFrameRate

# logicsClock

# messagingClock

# physicsClock

# processBehaviors

# processCollisions

# processMutators

# stage

# stream

# transform

# uiContainer

# updatePhysics
